ACO HexDrain B 125®
Drainage channel for light duty applications
Manufactured from recycled polypropylene, ACO HexDrain® B 125 is suitable for vehicle traffic up to Load Class B 125 - Pedestrian precincts, light vehicles, private car parks and drives.
ACO HexDrain® B 125 comes complete with a corrosion resistant black composite HeelGuard™ grating. The slots allows a person to move across with confidence, while the grate supports a domestic vehicle.
The ACO Drainlock™ grating has a bar-less locking device, allowing for quick and simple installation of gratings.
Complete the system with ACO’s range of accessories, designed to aid simple and fast installation
HexDrain® B 125 accessories
HexDrain® B 125 Closing endcap - 11085
HexDrain® B Sump - 11385

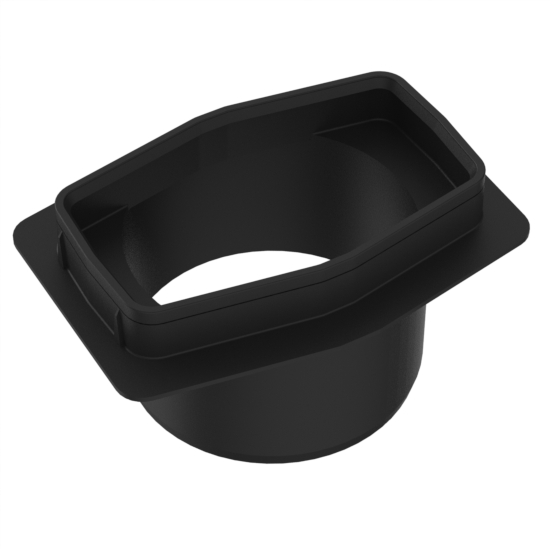

110mm Vertical outlet connector - 11285
Roddable foul air trap 110mm - 11191
Grating Lifting Tool - 1367
Features
- Anti-shunt prevents grating movement once installed
- HeelGuard™ grating with 8mm slots
- Cutting guide to create half metre channels
- ACO Drainlock™ grating - this bar-less locking device allows quick and simple installation of gratings
- Vertical knockout for connection to PVC-U pipe or sump via outlet connectors
- UKCA and CE marked and fully certified to Load Class B 125 BS EN 1433:2002
Benefits
- Male and female channel connections clip together for quick and easy installation
- 100mm overall channel depth
- Environmentally friendly product - manufactured from recycled polypropylene and 100% recyclable
Recommended Applications
- Driveways
- Small Private Car Parks
Not Recommended Applications
- Threshold Drainage
Related Products
Load Class N/A
