ACO RainDrain®
Drainage channel for domestic applications
Manufactured from ACO's high strength polymer concrete material, ACO RainDrain® is suitable for domestic applications up to Load Class A 15.
The high quality ACO RainDrain® channels interlock, allowing for quick and easy installation.
ACO's range of elegant and modern 'Complete the Look' gratings are available to provide choice and style to driveway and patio projects. A choice of eight gratings are available to provide the perfect finish:
- Wedge Wire Stainless Steel
- Mosaic HeelGuard™ ATec
- Intercept HeelGuard™ ATec
- Antique Iron HeelGuard™ ATec
- Polished Stainless Steel
- Anthracite
- Galvanised Steel
- Black Plastic
Features

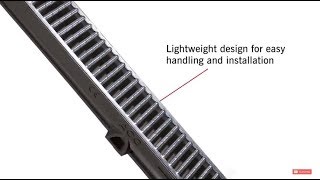

- Lightweight design for easy handling and installation
- Channel shape anchors product into concrete surround
- Manufactured from polymer concrete
- UKCA and CE marked and fully certified to Load Class A 15 BS EN 1433:2002
Benefits
- Knock-out for connection to 110mm PVC-U pipe
- Channels interlock for quick and easy installation
- Sealant groove for simple watertight installation
- Profile improves speed of water and promotes self cleansing
Recommended Applications
- Garage Thresholds
- Patio and Paths
- Pedestrian Precincts
Not Recommended Applications
- Car Parking Areas
ACO RainDrain® corner unit
Features of the ACO RainDrain® corner unit:
- Galvanised steel grating
- Grating is easy to lift for access and inspections
- Male and female connection to connect to ACO RainDrain® channels
- Knock out bottom outlet to connect to ø110mm pipe work
- Four knock out sides for connecting to channels
RainDrain® accessories
RainDrain® Corner Unit - 47011
Closing End Cap – 319288
RainDrain® Sump Unit - 38703
Outlet End cap - 319289
Horizontal foul air trap - 01684
820 Drain union - 0056
Grating Lifting Tool - 1367
Patio drainage
Click the image above to learn more about patio drainage options and tips from ACO.
Garage threshold drainage
Click the image above to learn more about garage threshold drainage options and tips from ACO.
