ACO RoadDrain®

A tough one piece channel drainage system

ACO RoadDrain® is a tough one piece channel drainage system ideal for medium to heavy-duty highway, distribution yards and airfield applications.

Manufactured from ACO's high strength polymer concrete, the one piece system is strong and robust in design and the absence of separate gratings eliminates the risk of loss or vandalism. The integral channel and grating design also improves the inherent strength of the system.

Most significantly ACO RoadDrain® carries the BSI Kitemark which ensures that the materials and the process used to manufacture it, produce consistently high quality BS EN 1433: 2002 marked product. The product is also fully compliant with national highways and transport agencies (UK) and National Roads Authority (ROI) requirements for motorway and major trunk roads.

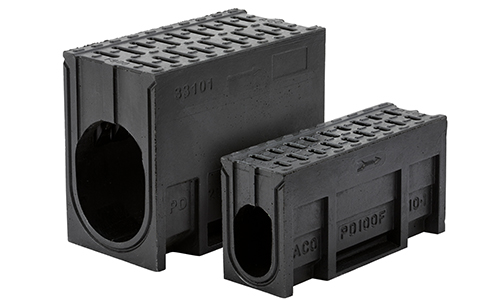

ACO RoadDrain® is available in two channel widths; 100mm and 200mm and has a variety of depths to suit many design schemes. The system has a full range of accessories for simple connection to underground drainage. System maintenance is simplified by using ACO RoadDrain® rodding access units.

The NEW updated PD100F units have been redesigned to make installation even more efficient in cost and time.

NEW! Updated PD100F Design

The newly updated PD100F units have undergone a comprehensive redesign, to enhance installation efficiency, significantly reducing both time and costs associated with the process.

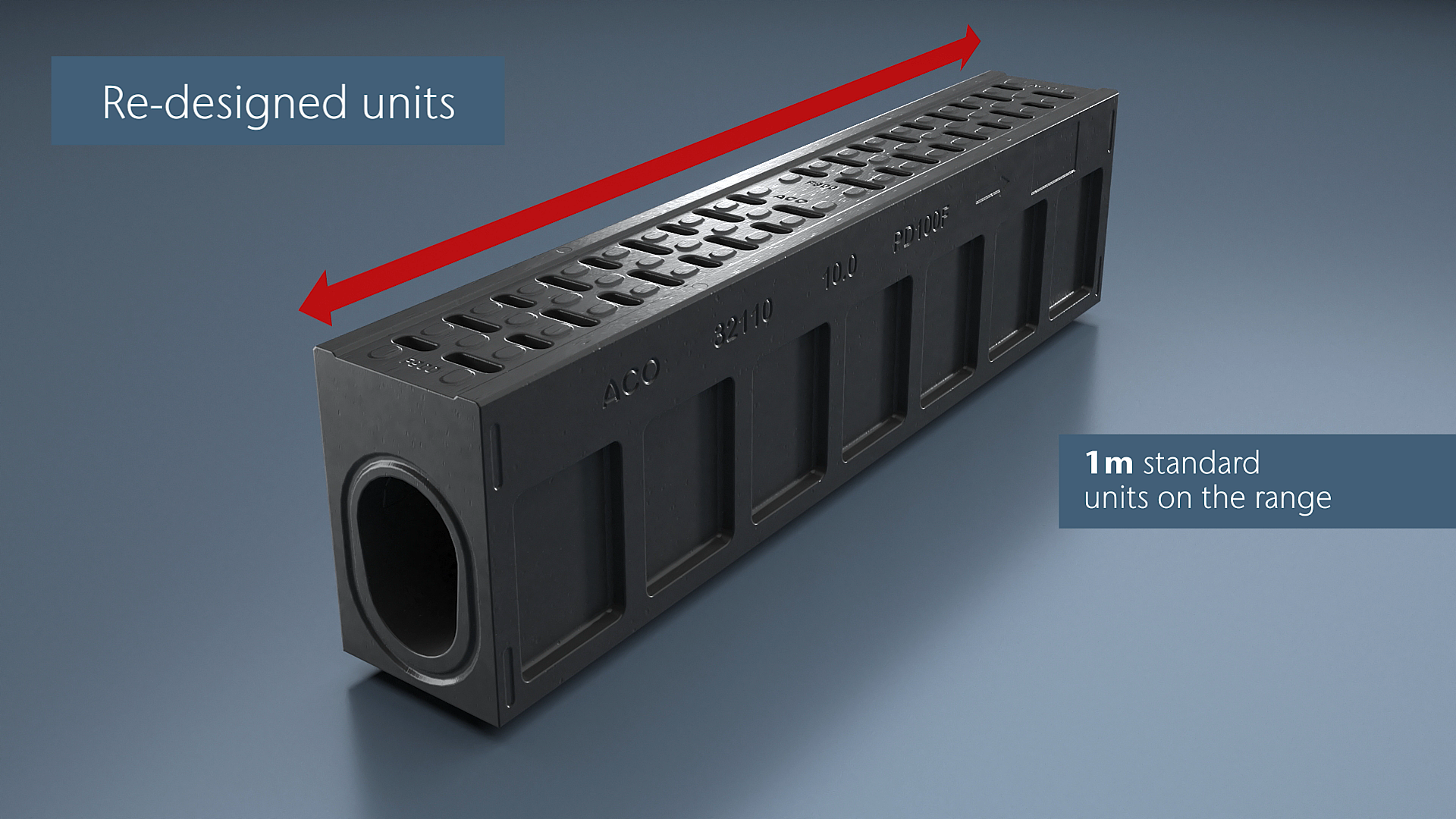

One Metre Units

The PD100F is now available as one metre units.This means less units to install, reducing the installation time.

Reduced Concrete Haunch

The latest PD100F only require a 150mm concrete surround, offering an improved efficiency in installation.

T-Junction Connnection

T-Junction sections are installed with ease using the 90 degree knockout of the new PD100F access unit.

New Accessories

Expanded and improved PD100F accessories simplify the specification and installation of components.

High Capacity Solution

ACO RoadDrain® PD200F

For applications requiring greater surface water management capacity, the ACO Roaddrain® PD200F offers an increased size over the PD100F. Its larger profile is designed to handle significantly higher volumes of water, making it ideal for areas with heavy rainfall or substantial runoff needs.

200mm Internal Width
Up to a internal depth of 470mm
Outlets via the ACO Universal Gully

Features, Benefits and Applications

Features & Benefits
Applications

Features

For use in medium to heavy duty highway and warehouse applications

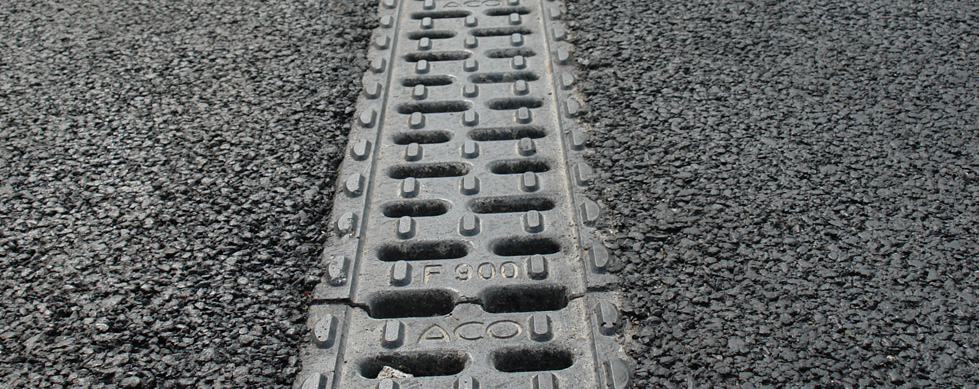

No loose gratings eliminates the risk of loss or vandalism
Large intake area for maximum hydraulic performance
Level or stepped invert system for efficient scheme design
Tough and robust channel design
Complies with IAN 117/08 and is Kitemarked to BS EN 1433:2002 D 400 for highway use
Manufactured from strong, lightweight recycled material

Benefits

Integral channel and grating design improves inherent strength of the system
High in-take capacity is provided by 15mm slots
ACO RoadDrain® is available in two channel widths: 100mm and 200mm
ACO RoadDrain® units supplied in 500mm lengths
Sealant groove for simple watertight installations
Range of accessories available for simple connection to underground drainage
ACO RoadDrain® system is fully certified to Load Class F 900 BS EN 433:2002

Recommended Applications

Public landscaping

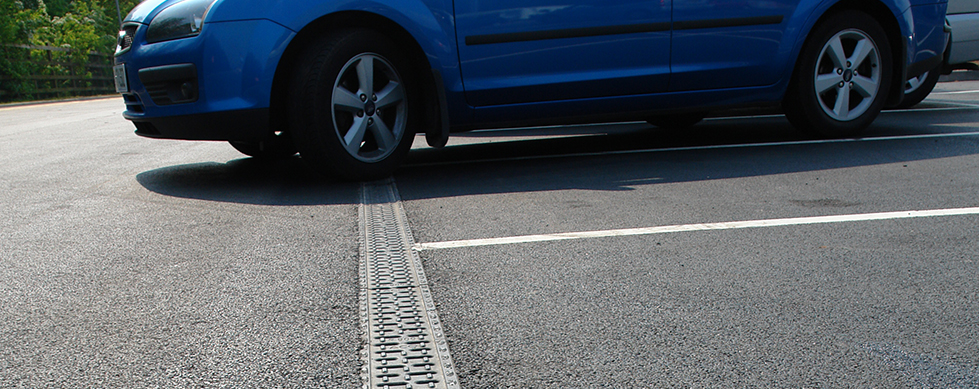

Car parking
HGV parking
Petrol station forecourts
Light industrial
Heavy industrial

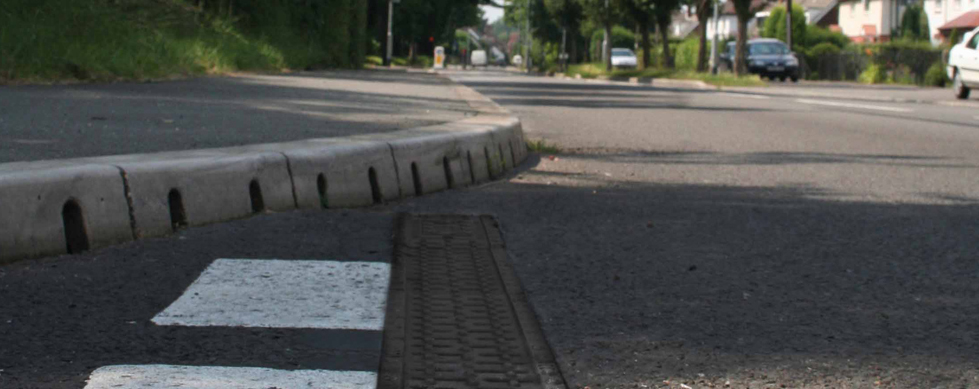

Public highways
Distribution yards
Airport (airside)
Port and dock sides
SuDs
Security areas

Not Recommended Applications

Threshold drainage
Domestic landscaping

Specifying ACO RoadDrain

Certified to a load class of F900, the ACO RoadDrain® is ideal for areas of very high wheel loads including Airports and Docks. The monolithic system protects traffic from the risk of loose gratings. The system is:

Fully compliant to the Specification for Highway Works
Kitemarked to BS EN 1433:2002
Certified by a notified body to BS EN 1433: 2002 Load Class F 900
CE marked by a notified body

Hydraulic Design

With two channel widths, 100mm and 200mm, and a variety of available depths, the ACO RoadDrain® can be efficiently tailored to meet a wide range of hydraulic needs. ACO's free QuAD hydraulic software enables rapid system design customised to your project requirements.

Access the tool here
