ACO Q-Brake Vortex

Controlling the release of stormwater

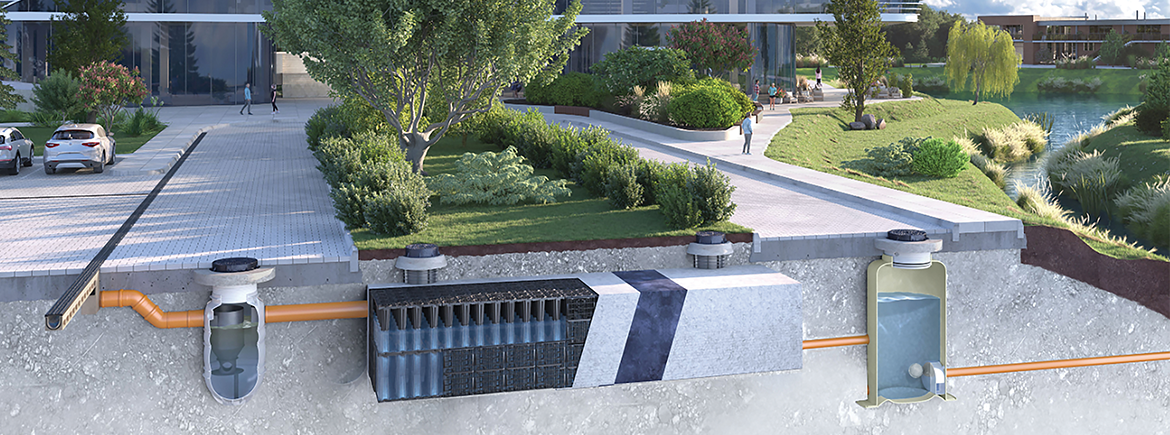

ACO Q-Brake Vortex is a horizontal vortex flow control designed to prevent downstream flooding by controlling the release of stormwater before it discharges into the watercourse or sewer. Available as a model in Microdrainage, Site3D and Causeway Flow Hydraulic Design software, it has many water authority approvals.

Custom built to suit the site requirements
Available from 2-100 l/s and up to 3m design head
Manufactured from grade 304 stainless steel
All parts welded to BS 4872
Available with curved or flat back
Attenuation volume required reduced
Larger clear opening, than traditional orifice plates, reduces risk of blockage

Parameters to quote

Each ACO Q-Brake Vortex and ACO Q-Chamber is individually configured to suit the specific performance criteria and the profile of the chamber.

ACO Q-Brake: design head (m) & flow rate (l/s)
ACO Q-Chamber: depth to invert / diameter of the chamber / number of pipe connections / diameters of pipe connections

Contact our dedicated stormwater management team for more information and to request a quote: uk-swc@aco.co.uk

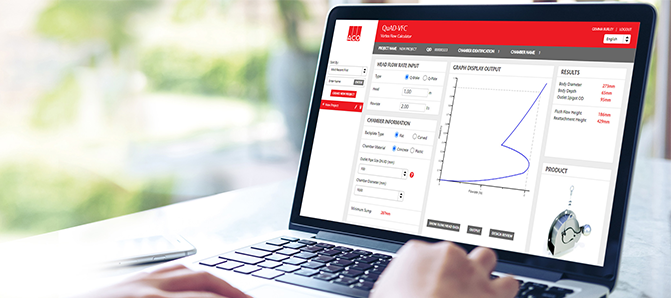

NEW QuAD-VFC Design Tool

QuAD-VFC is a free cloud-based software that supports the design and specification of ACO’s Q-Brake and Q-Plate range. QuAD-VFC calculates vortex flow control dimensions to achieve required head and flow rates. Offering instant calculations, the tool helps to speed up specification by taking into account parameters such as chamber design and outlet dimensions.

Featured Downloads

Q-Brake and Q-Chamber Datasheet

Find out more about the ACO Q-Brake Vortex flow Control and the new plastic chamber, ACO Q-Chamber, that can house it

Download

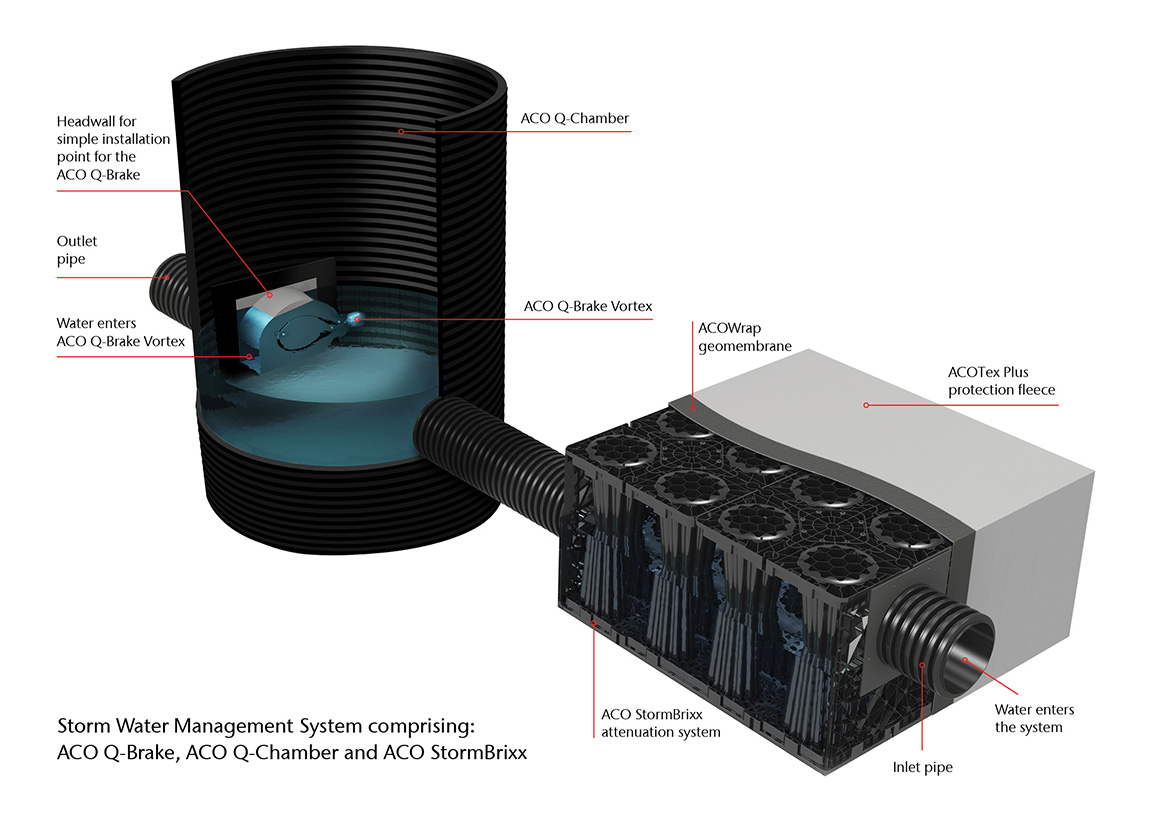

ACO Q-Chamber

ACO Q-Chamber is a new durable bespoke prefabricated chamber designed to house ACO Q-Brake, as well as ACO Q-Plate. It combines easy-handling and simple installation with a fully-welded plastic, durable construction.

Key Benefits include:

Easy transportation and installation
Minimise working time in a confined space
All plastic interfaces fully welded, watertight and spark tested

Features & Benefits
Applications

Features

Addresses planning and connection requirement of Floods and Water Management Act
Tailored performance provides optimum hydraulic efficiency
Reduces the need for on-site storage lowering installation costs
Available with a curved back for ease of installation
Simplifies access and maintenance
Removes the need for direct man access to sewer manholes
Proven performance and reliability
Approved by Severn Trent, Anglian and Scottish Water, and others
Simple to install
